How to choose a flow meter for concentrated sulfuric acid? Detailed comparison and analysis of advantages and disadvantages
2024-11-08
Choosing a flow meter suitable for concentrated sulfuric acid requires comprehensive consideration of corrosion resistance, measurement accuracy, service conditions and cost. The following is a comparison and analysis of the advantages and disadvantages of several common flow meters:

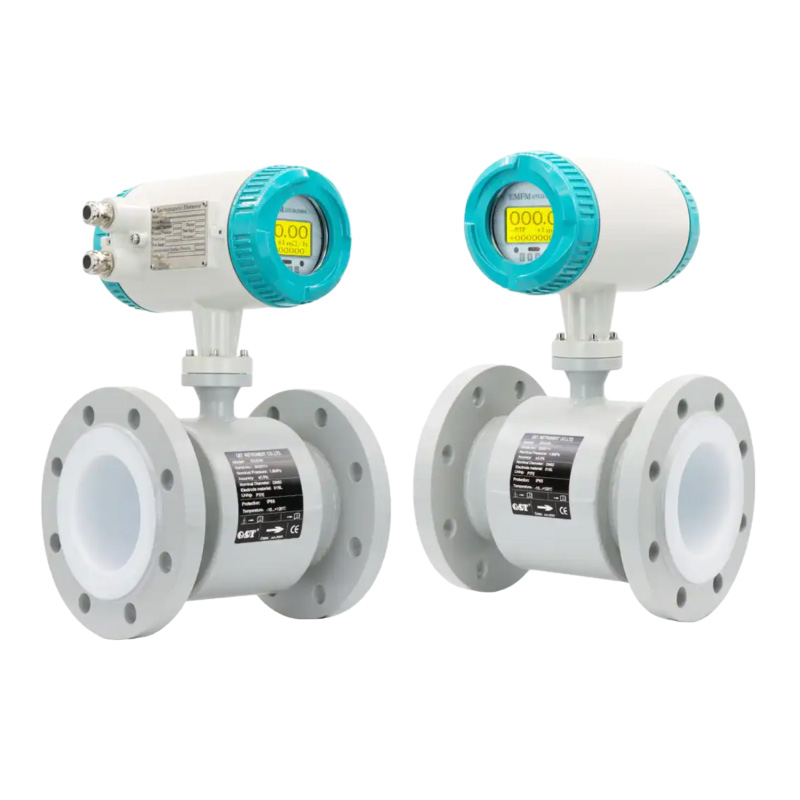

Electromagnetic flow meter
advantage
Wide measuring range and high measuring accuracy.
The sensor has simple structure, free flow component and low energy consumption.
It can measure the instantaneous pulsating flow rate and the flow rate in both directions.
Strong corrosion resistance, suitable for measuring corrosive media.
shortcoming
There are certain requirements on the flow rate, and the measurement accuracy will decrease when the flow rate is too low.
Due to the conductivity of the medium, it may not be measured when the conductivity is too low.

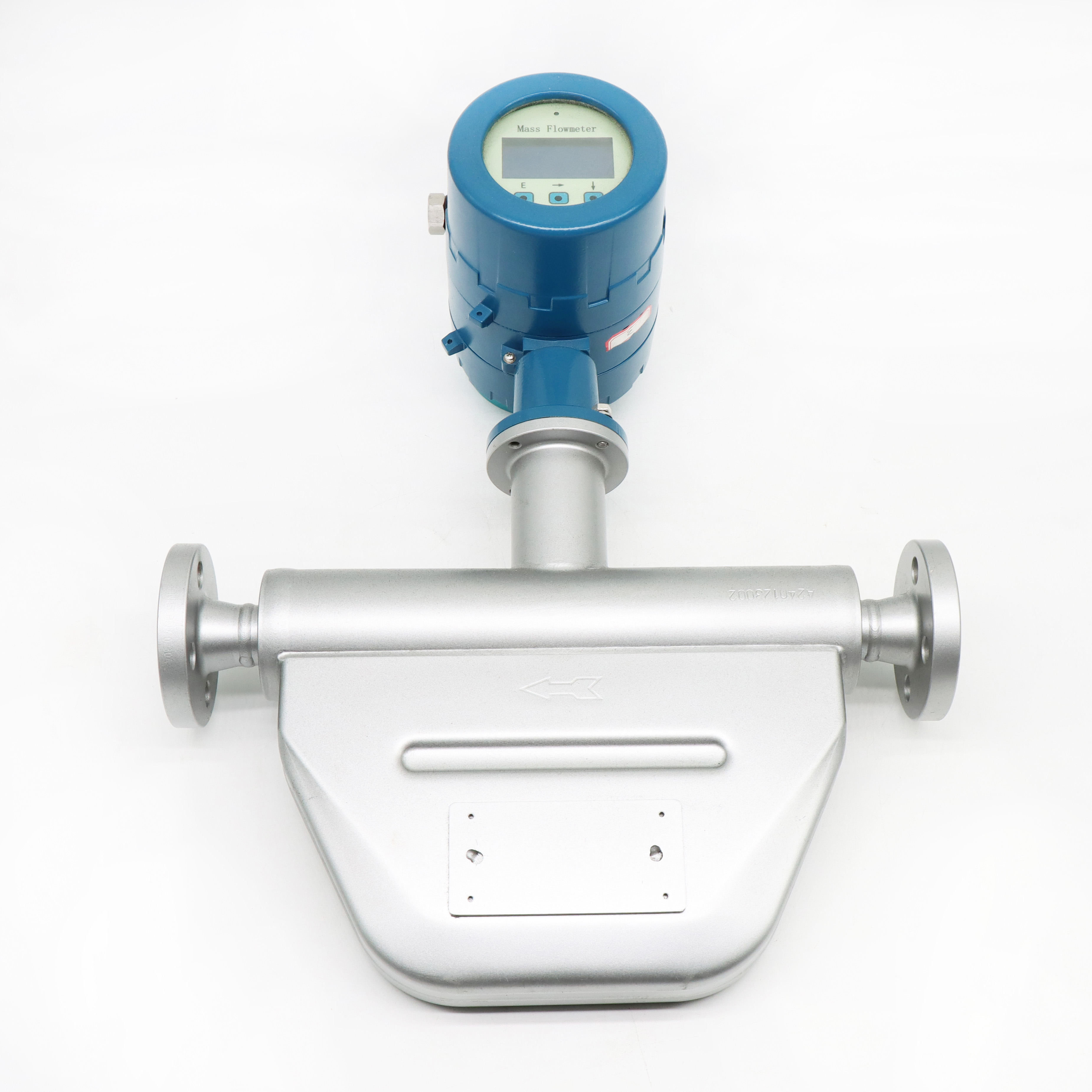

Mass flow meter
advantage
The mass flow rate of the medium can be directly measured without temperature and pressure compensation.
High measurement accuracy and good repeatability.
Strong corrosion resistance, suitable for measuring high concentration sulfuric acid.
shortcoming
The cost is higher and installation and maintenance is more complex.
It is sensitive to the vibration and temperature change of the measuring environment.
Glass rotameter
advantage
Simple structure, low price.
Visual measurement, intuitive reading.
Suitable for measuring medium with low flow rate and small flow rate.
shortcoming
Limited corrosion resistance, not suitable for measuring strong corrosive media.
The measurement accuracy is relatively low, which is greatly affected by medium temperature and pressure.
Fragile, not suitable for use in environments with high vibration or shock.
Selection suggestion
Concentration requirements: The concentration of concentrated sulfuric acid is higher, and it is necessary to choose a flow meter with strong corrosion resistance, such as an electromagnetic flow meter (need to choose a corrosion-resistant electrode and liner) or a mass flow meter.
Flow rate requirements: Select the appropriate flow meter according to the flow rate of the medium. When the flow rate is high, the electromagnetic flow meter is more suitable; When the flow rate is low, glass rotameters can be considered (but pay attention to their corrosion resistance and accuracy limitations).
Accuracy requirements: When the measurement accuracy is high, the mass flow meter or high-precision electromagnetic flow meter is preferred.
Cost consideration: under the premise of ensuring measurement accuracy and corrosion resistance, the cost of flow meter and installation and maintenance costs are comprehensively considered.
In summary, the selection of flow meters suitable for concentrated sulfuric acid needs to be determined according to the specific conditions and requirements of use. In practical applications, comprehensive consideration and selection should be carried out in combination with the field environment, medium characteristics and operating experience.
If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.
