Application fields of Thermal Gas Mass Flow Meter

When selecting a thermal mass flowmeter, several important factors should be taken into consideration to ensure it meets the requirements of the application and provides accurate and reliable measurements. Here are key points to pay attention to:

The thermal gas mass flowmeter is an instrument for measuring fluid flow by using the principle of heat conduction. The instrument uses constant temperature difference method to accurately measure the gas mass flow.

Thermal gas mass flowmeter has a wide range of applications in many fields, its high precision, rapid response and stability characteristics make it in a variety of gas flow measurement occasions can play an excellent performance, for the development of various industries to provide more reliable technical support.

Thermal gas mass flowmeter as a gas flowmeter, the application is very wide, today we specifically understand the use of thermal gas mass flowmeter:

The medium of one of the two tubes of the thermal gas mass flowmeter does not flow, and the medium of the other tube flows. By comparing the Coriolis force of two pipes to obtain the flow rate, it is convenient to eliminate the natural vibration of the pipeline, the vibration of the fluid itself and other factors that affect or interfere with the measurement.

Due to the continuous development of thermal gas mass flow meter is based on the principle of thermal diffusion, that is, the use of fluid flow through the heated object, the heated object of the heat dissipation of how much with the fluid flow rate into a certain proportional relationship. Specifically, the flow meter’s sensor has two standard and the RTD, has been used as a heat source, has been used to measure the fluid temperature, the fluid flows through, the heat loss of the heat source and the size of the flow into a non-linear relationship, the thermal gas mass flowmeter can be converted into a measurement of this relationship to measure the flow rate of the signal of the linear output.

When applying a thermal mass flowmeter, several key points need to be considered to ensure accurate and reliable measurement. Here are some important factors to pay attention to:

Installing and debugging a thermal mass flowmeter correctly in the early stages is crucial to ensure accurate and reliable measurements. Here are some precautions to take during installation and debugging:

Thermal gas mass flowmeter due to its various advantages and characteristics, now has been widely used in various industries flow measurement, in the actual measurement of thermal gas flow meter technical advantages are more and more obvious, the following we on the thermal gas mass flowmeter application occasions and some of their own technical advantages do some introduction, hope to be useful to you:

The thermal gas flowmeter has many remarkable characteristics, which make it widely used in the field of gas flow measurement. The following are the main features of thermal gas flowmeters:

Thermal Gas Mass Flow Meter is also divided into flange link Thermal Gas Mass Flow Meter and plug-in link Thermal Gas Mass Flow Meter, The following describes the application scope of the Thermal Gas Mass Flow Meter.

The thermal gas mass flowmeter is an instrument that uses the principle of heat conduction to measure fluid flow. The instrument uses the constant temperature difference method to measure the gas flow accurately. It has the advantages of small size, high digitization, easy installation and accurate measurement. Today we are mainly to talk about the thermal gas mass flowmeter in the installation process need to pay attention to what are?

The origin of the thermal gas mass flowmeter is from the hot wire anemometer. The temperature of the platinum heating wire has a proportional relationship with the change in the flow rate of the fluid: the faster the flow rate, the more heat is taken away.

The thermal gas mass flowmeter is an instrument for measuring fluid flow by using the principle of heat conduction. The instrument uses constant temperature difference method to accurately measure the gas mass flow.

Thermal gas mass flowmeter is the use of fluid flowing through the pipe heated by an external heat source when the temperature field changes, is a high-sensitivity, high-precision gas measurement instrument, in the gas flow measurement conditions, good stability, used for gas process control and gas flow measurement one of the most used instruments.

In the industrial field, companies need to use natural gas, hydrogen and other gas in many process production, sometimes also need oxygen, nitrogen, argon and other made of gas, this part of the gas cost needs to be controlled and monitored, and the selection of monitoring instruments need to consider various issues:

One of the key advantages of thermal mass flow meters is their quick response time, enabling real-time monitoring and control of gas flow in dynamic processes. Moreover, these meters are known for their low pressure drop, minimizing energy consumption and preserving the efficiency of the overall system. With no moving parts, thermal mass flow meters also offer low maintenance requirements, reducing downtime and operational costs for industries relying on precise gas flow measurements.

Response speed: 1s
Output signal: 4-20mA (Photoelectric isolation, large load 500Ω)、
pulse、RS-485 (photoelectric isolation)、HART agreement
Alarm: 1-2 relay normally open contact、10A/220V/AC、*/30V/DC
Type of supply: Separate structure, integrated structure
Pipe material: Carbon steel, stainless steel, plastic, etc
Field display: Four lines of Chinese liquid crystal display
Display content: Mass flow, standard volume flow, cumulative flow, standard time, cumulative running time, standard flow rate, etc
Protection grade: IP65
Sensor material: Stainless steel Stainless steel, carbon steel

Thermal mass flowmeters are known for their ability to provide accurate and reliable measurements of fluid flow rates, regardless of changes in pressure and temperature. This resilience to pressure and temperature variations is due to the operating principle of thermal mass flowmeters and their design features. Here’s why thermal mass flowmeters are not significantly affected by changes in pressure and temperature:

Thermal gas mass flowmeter has certain operating procedures and precautions in use, and must pay attention to these points when in use:

Choosing the correct installation direction for a thermal gas mass flowmeter is essential for optimal performance and accurate measurement. The installation direction should be determined based on factors such as the flow profile, flow conditions, and manufacturer recommendations. Here are some guidelines to help you choose the appropriate installation direction for a thermal gas mass flowmeter:

The thermal mass flowmeter is a flow meter based on the principle of thermal diffusion. The device uses the constant temperature difference method to measure the gas accurately. It has the advantages of small size, high digitization, easy installation, accurate measurement and so on.

Measuring medium: Various gases (except acetylene gas)
Pipe diameter range: DN10-2000mm
Accuracy Degree: ±1～2.5%
Pipe material: Carbon steel, stainless steel, plastic, etc

At present, oxygen generator in the production process will be affected by external influences, more and more enterprises for fine management, energy consumption, cost accounting and other requirements for the loss of this part of the oxygen measurement.

Although the thermal gas mass flowmeter has many advantages in this respect, it can not be used for large pipe runoff measurement, pressure loss is relatively large, and the price is more expensive, which limits its measurement application in natural gas long distance pipeline.

The thermal gas mass flowmeter is an instrument for measuring fluid flow by using the principle of heat conduction. The instrument uses constant temperature difference method to accurately measure the gas mass flow. The most important thing is that the range ratio of this flowmeter is very wide, which greatly meets the measurement needs of the owner.

Thermal mass flowmeters offer several advantages and disadvantages, which are important to consider when selecting a flow measurement solution. Here are some of the key advantages and disadvantages:

Like the flue gas, this medium has a higher temperature, contains more impurities such as solid dust, the general application of large caliber, flow rate range is relatively wide, so the measurement is more difficult, so in the selection and use of flue gas flow timing should pay attention to the characteristics of the power plant flue wind speed, pay attention to the principle of choosing sensors, It is also necessary to pay attention to the wear resistance, corrosion resistance, dirt resistance and high temperature resistance of the sensor, and select the appropriate measurement position to ensure the measurement accuracy.

Common faults encountered with thermal mass flowmeters can disrupt their accurate measurement capabilities. Here are some typical issues along with potential solutions:

The data show that in the flow measurement failure probability, the improper selection of flowmeter accounts for about 70%, and the quality of flowmeter products or other reasons account for 30%, which shows how important the selection of flow measurement is.

Direct measurement of gas mass, without temperature, pressure compensation of gas flow measurement instrument, it represents the development trend of gas flow measurement. The thermal mass flowmeter sensor part is composed of two reference platinum resistance temperature sensors, using a bridge loop, one sensor measures the fluid temperature, and the other sensor is a heating element, maintaining a constant temperature difference higher than the fluid temperature, that is, when the gas flows through the heating element, the heat is taken away, and the heat is proportional to the flow rate of the gas and the density of the gas. To maintain a fixed temperature difference between the two temperature sensors requires the circuit to provide more power to the heating element, and the amount of output power in the circuit is related to the mass of the fluid, thus measuring the flow rate.

Measuring medium: Various gases (except acetylene gas)
Pipe diameter range: DN10-2000mm
Accuracy Degree: ±1～2.5%
Pipe material: Carbon steel, stainless steel, plastic, etc

At the heart of a thermal mass flow meter is a sensor that heats up a portion of the gas stream while monitoring the temperature difference between the heated and unheated sections. As the gas flows over the heated sensor, it carries away heat, and the temperature difference provides a direct measurement of the mass flow rate. The beauty of this method lies in its ability to provide accurate readings across a wide range of flow rates, from low to high velocities, ensuring versatility and reliability in various industrial settings.

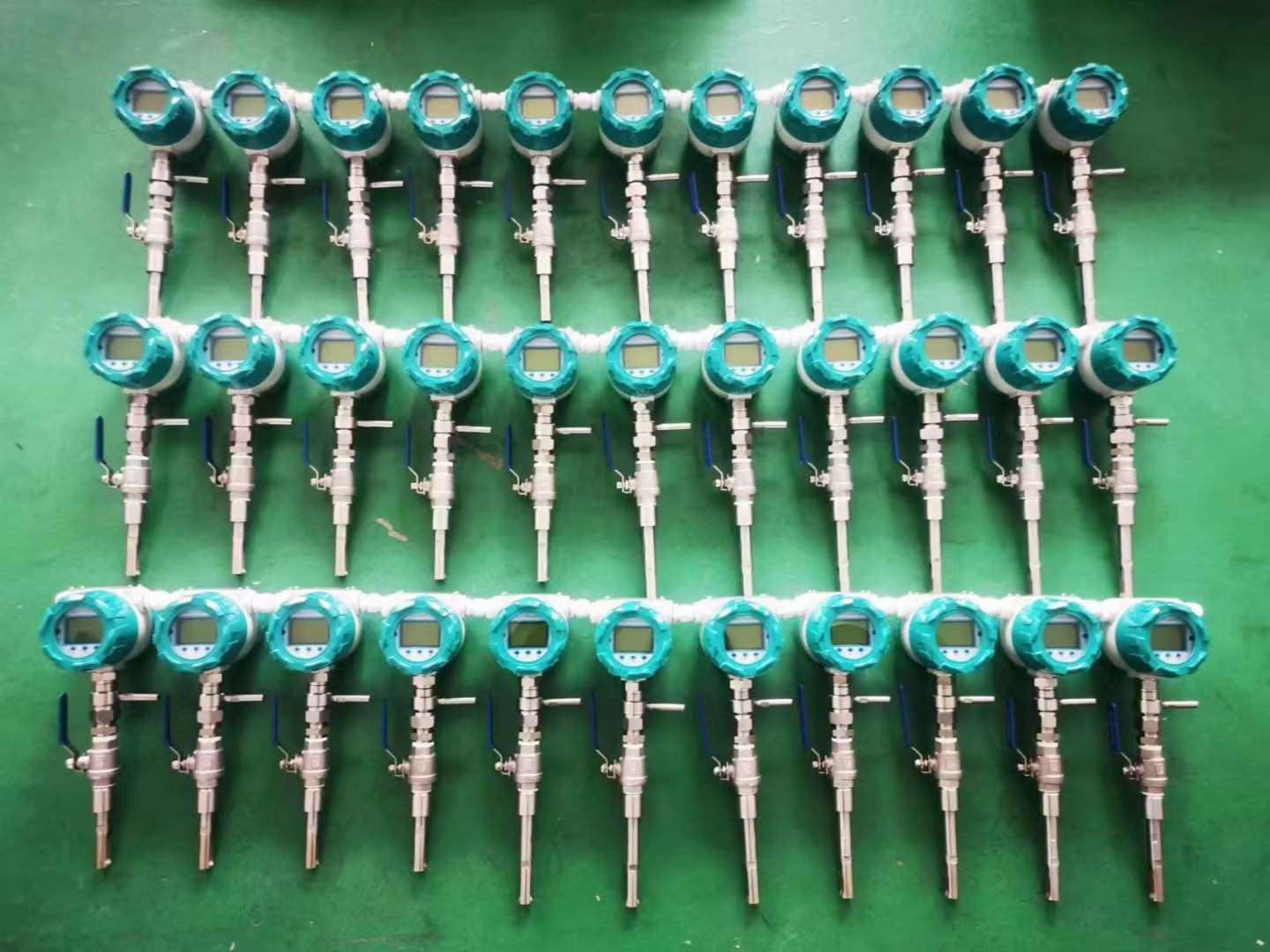

Structural form: plug-in pipelined
Measuring medium: All gases (except acetylene)
Pipe diameter range: Caliber DN32 or higher DN10～DN2000mm
Velocity range: 0.1～120Nm/s
Precision: ±1～2.5%
Operating temperature: Sensor：-40℃～+220℃
convertor：-20℃～+45℃
Working pressure: Medium pressure≤2.5Mpa
Medium pressure≤4.0Mpa
Power supply: DC24V or AC220V≤18W
